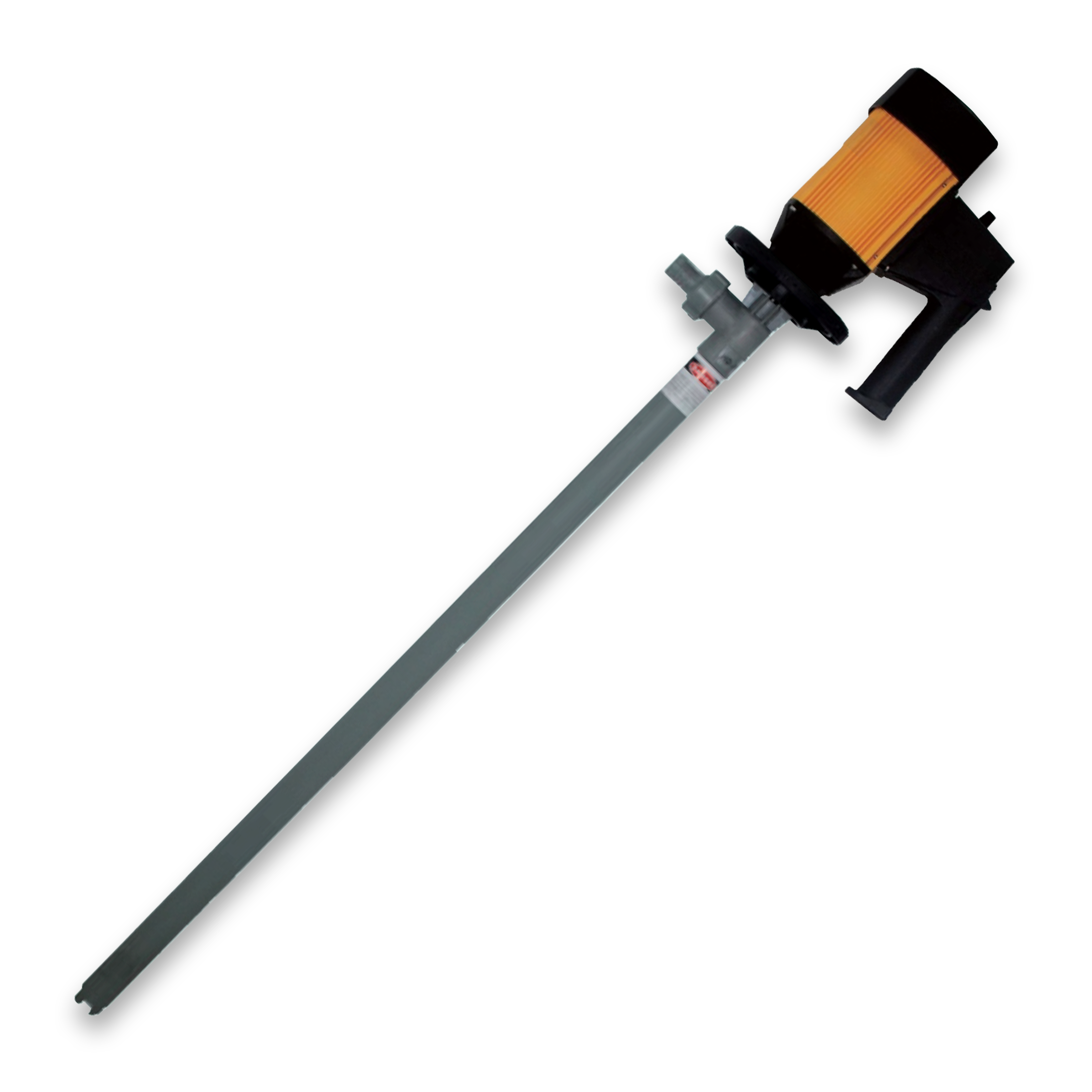

Barrel pumps BATURIN BT-PPHT

FLOW PART
FIBERGLASS-REINFORCEDPOLYETHYLENE
(PPHT)
IMPELLER TYPE
MOTOR 220V
PERMISSIBLE VISCOSITY UP TO 1,000 cP
PUMPED MEDIA

  • acetic acid
  • ammonium
  • chloric acid iron
  • hydrochloric acid
  • phosphoric acid (45%)
  • nitric acids (20%)
  • sulfuric acid (75%)
  • sodium hydroxide, etc.
I have a question

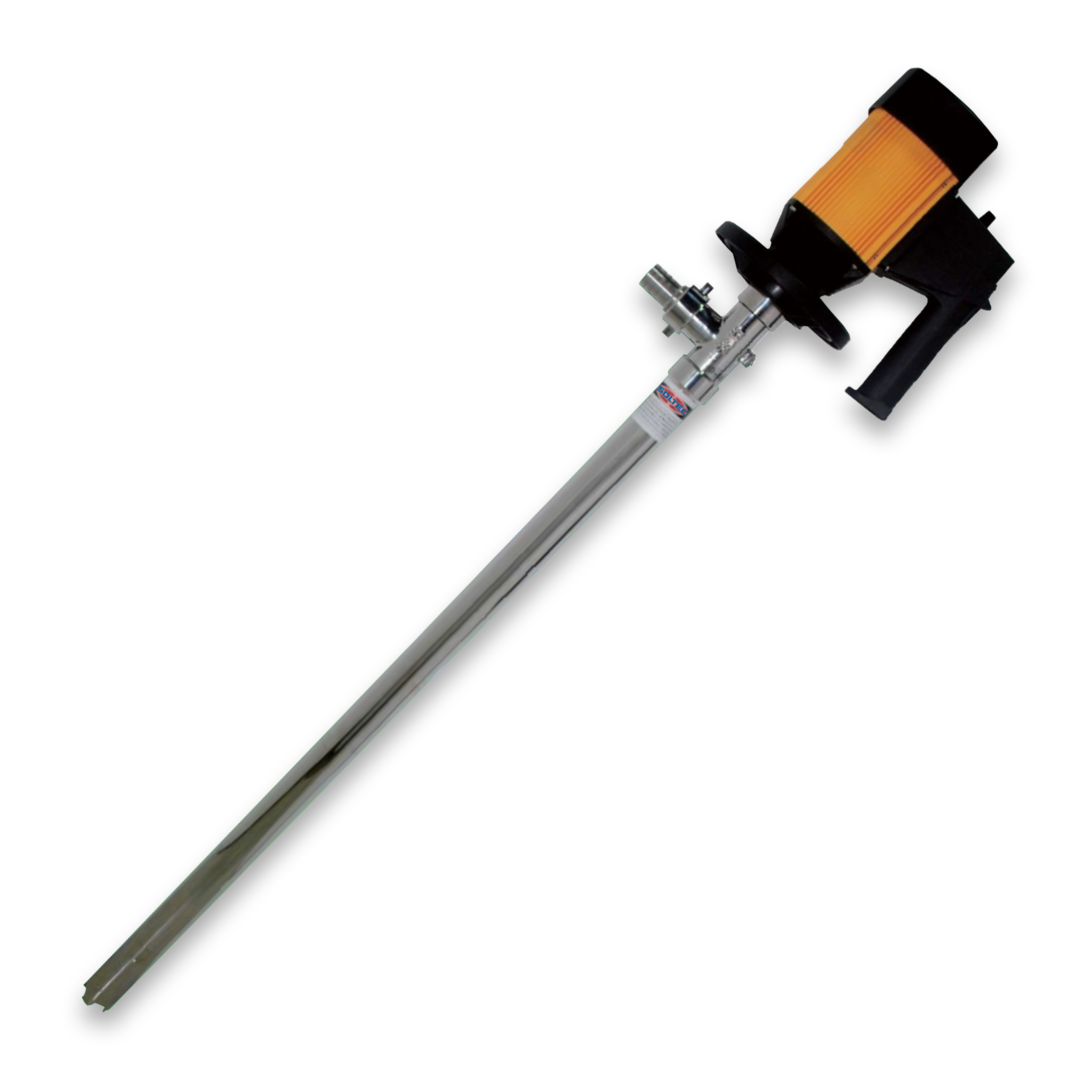

Barrel pumps BATURIN BT-ss

FLOW PART
STAINLESS STEEL (SS316)
IMPELLER TYPE
MOTOR 220V
PERMISSIBLE VISCOSITY UP TO 1,000 cP
PUMPED MEDIA

  • flammable liquids
  • diesel fuel
  • gasoline
  • oils
  • surfactants
  • esters
  • alcohols
  • medical products
  • food products
I have a question

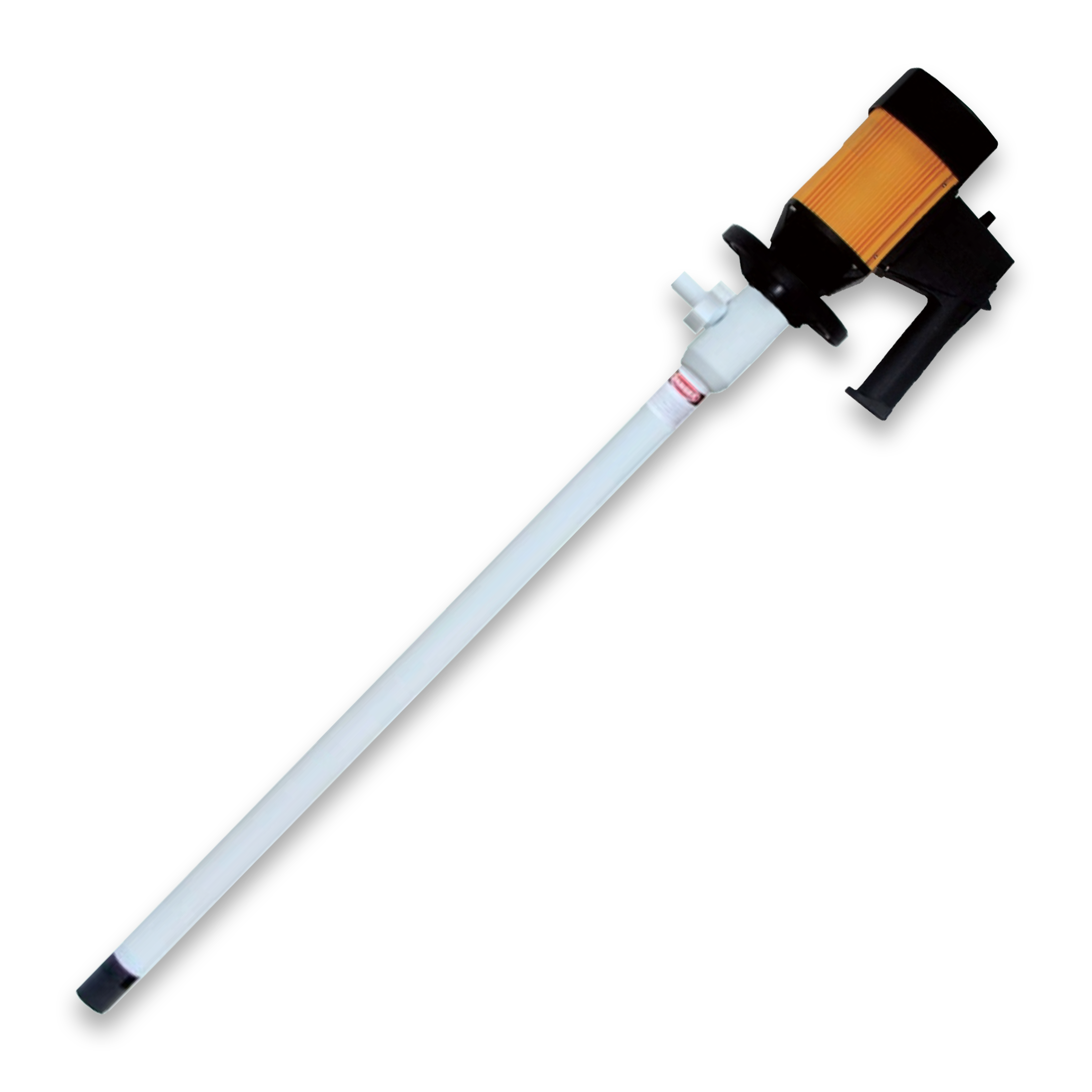

Barrel pumps BATURIN BT-PTFE

FLOW PART
POLYTETRAFLUOROETHYLENE (PTFE)
IMPELLER TYPE
MOTOR 220V
PERMISSIBLE VISCOSITY UP TO 1,000 cP
PUMPED MEDIA

  • acids
  • sodium hydroxide
  • potassium hydroxide
  • methane
  • ethane
  • benzenes
  • esters
  • acetone
  • cyclohexanone
  • vinyl fluoride
I have a question
Barrel pumps BATURIN BT-PVDF

FLOW PART
POLYVINYLIDENE FLUORIDE (PVDF)
IMPELLER TYPE
MOTOR 220V
PERMISSIBLE VISCOSITY UP TO 1,000 cP
PUMPED MEDIA

  • liquids with high corrosive activity
  • hydrofluoric acid (COLD)
  • amino acids (concentrated)
  • propanoic acid
  • stearic acid
  • sulfuric acid
  • other liquids
I HAVE A REQUEST
Barrel single-screw pumps BATURIN BT-hd

FLOW PART
STAINLESS STEEL (SS316)
MOTOR 380V / 220V
PERMISSIBLE VISCOSITY UP TO 10,000 cP
PUMPED MEDIA

  • flammable liquids
  • diesel fuel
  • gasoline
  • oils
  • surfactants
  • esters
  • alcohols
  • medical products
I have a question

What types of barrel pumps do we manufacture?

BATURIN manufactures barrel pumps with submersible sections available in various materials: POLYPROPYLENE (PPHT), STAINLESS STEEL (SS), POLYTETRAFLUOROETHYLENE (PTFE), POLYVINYLIDENE FLUORIDE (PVDF), and ALUMINUM (AL).
The pumps are manufactured as standard with immersion lengths ranging from 700 mm to 1,200 mm. The pumps can be designed for a variety of applications, including both impeller-type and single-screw models.

Impeller-type drum pumps are available with various drive types:

- HD-E2-V, 800 W electric motor for barrel pump with speed control

Rotation speed: 0 - 10,000 rpm
Power: 800 W


- HD-EX2-V, 880 W explosion-proof electric motor for barrel pump

Rotation speed: 12,000 rpm
Power: 880 W


- SB-1100W, 1100 W electric motor for barrel pump

Rotation speed: 10,000 rpm
Power: 1100 W

- SB-880W, 880 W electric motor for barrel pump

Rotation speed: 10,000 rpm
Power: 880 W


- SB-550W, 550 W electric motor for barrel pump

Rotation speed: 8000 rpm
Power: 550 W
