Types of Progressive Cavity Pumps & Parts
BATURIN.EUis one of the European distributors of Progressive Cavity Pumps and Parts. Our company supply equipment BATURIN.EUas well as aftermarket pumps and parts for NETZSCH , SEEPEX , ALLWEILER . We can also supply pumps that are replacements for single-screw pumps PCM , ALLWEILER , BORNEMANN , SULZER , NOVA ROTORS , MONO , MOYNO and more.
BATURIN.EU delivers pumps and replacement parts to customers' addresses throughout the European Union.

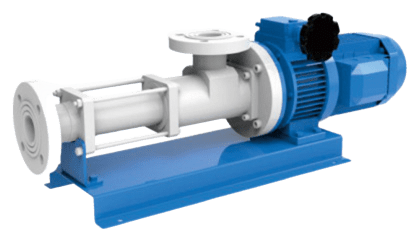

LP Series-Special pump(PTFE) for chemical industry
- 1. The pump body is made of polytetrafluoroethy lene (PTFE).
2. Metal flow parts are made of duplex stainless steel.
3. The stator material is fluorine glue and PTFE material .
4. The reducer motor can choose stepless speed regulation and gear reducer motor.
5. Application advantages: sodium hypochlorite, sulfuric acid, hydrochloric acid, polymeric compounds, hydrocarbon-containing benzene solution, etc.
CAPACITY 0.1-15 m3/H
Pressure 0-0.6 Mpa

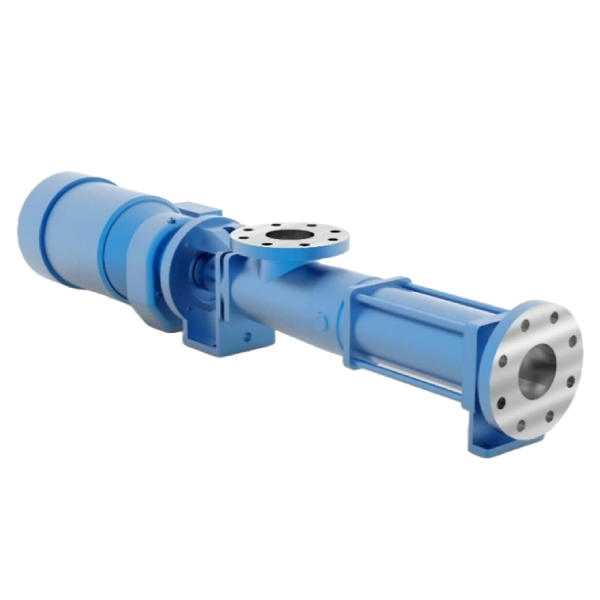

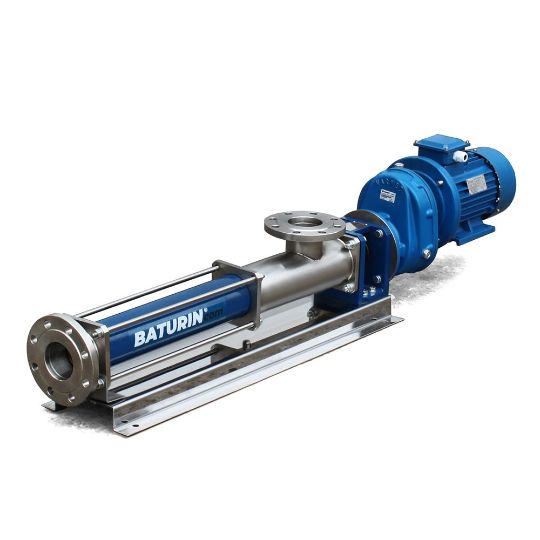

PROGRESSIVE CAVITY PUMPS
- CAPACITY 0.1 - 300 m3/h
- PRESSURE up to 4,8 MPa
- FLUID TEMP up to 130'C
- FLUID VISCOSITY up to 200'000 CPS

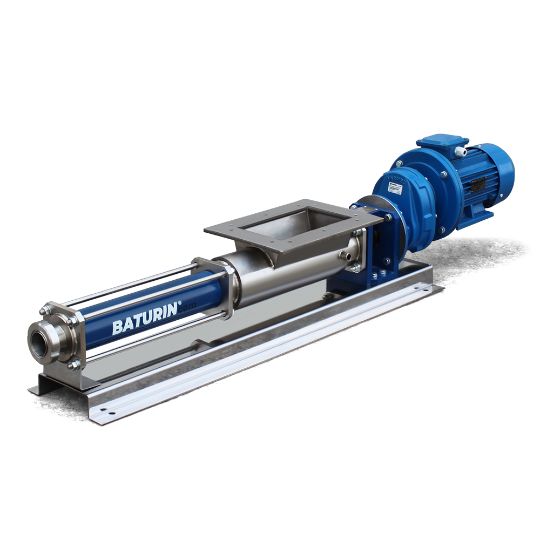

OPEN HOPPER Progressing cavity PUMPS
- CAPACITY 0.1 - 300 m3/h
- PRESSURE up to 4,8 MPa
- FLUID TEMP up to 130'C
- FLUID VISCOSITY up to 1'000'000 CPS

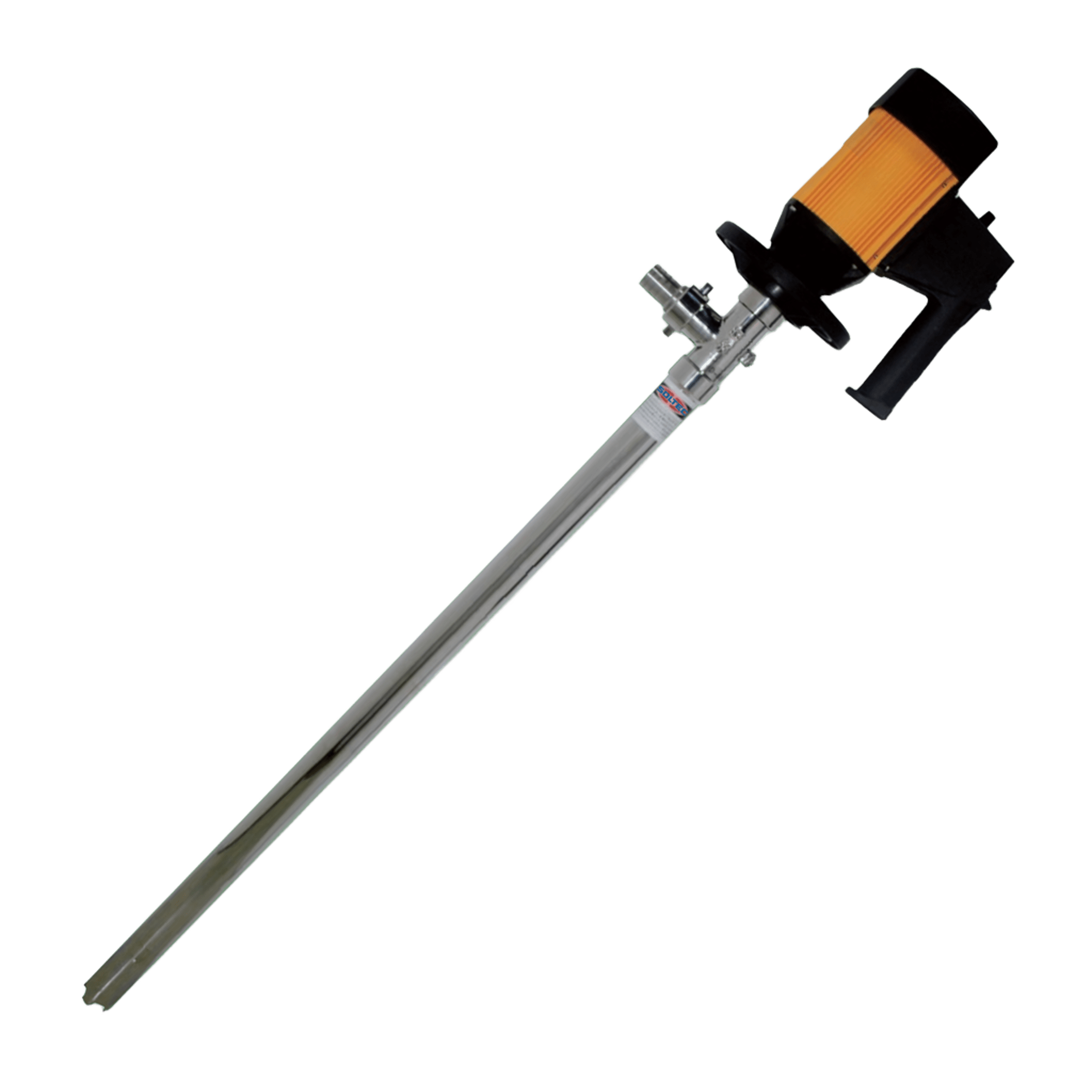

BARREL DRUM PUMPS BATURIN
- CAPACITY up to 2,7 m3/h
- PRESSURE up to 0,6 MPa
- FLUID TEMP up to 130'C
- FLUID VISCOSITY up to 10'000 CPS

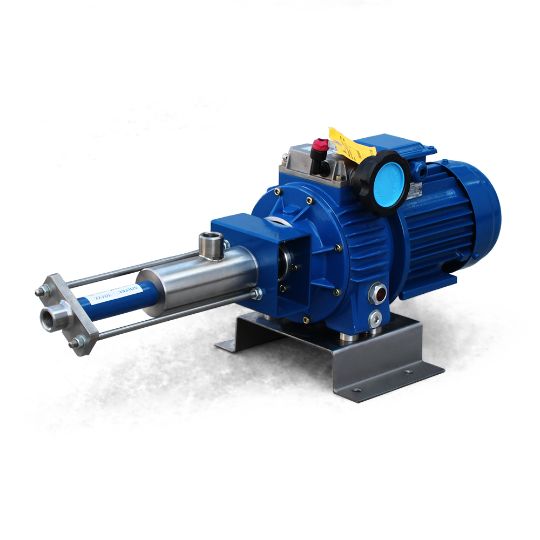

DOSING METERING PUMPS
- CAPACITY 1 - 200 Lit/h
- PRESSURE up to 2,4 MPa
- FLUID TEMP up to 130'C
- FLUID VISCOSITY up to 100'000 CPS

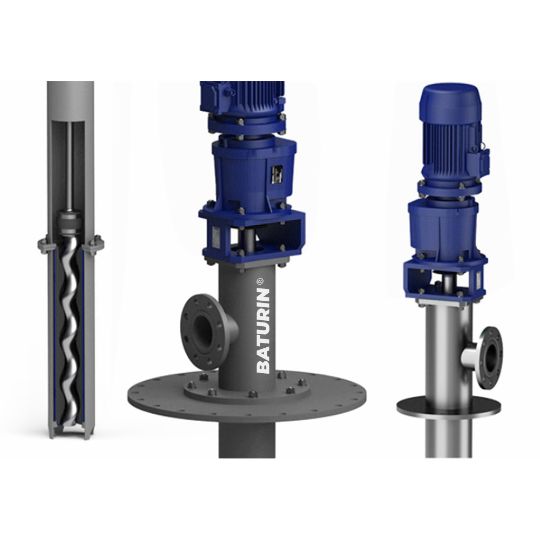

SEMI SUBMERSIBLE PUMPS
- CAPACITY 0.1 - 300 m3/h
- PRESSURE up to 2,4 MPa
- FLUID TEMP up to 130'C
- FLUID VISCOSITY up to 200'000 CPS
Operation of Progressive Cavity Single Screw Pumps
Progressive Cavity Pumps are the type of positive displacement pumps that employs an assembly of a single-helical steel rotor and a double-helical resilient stator. Eccentric rotation of the rotor inside the stator forms fixed-size sealed cavities that move along the assembly creating pressure. The diameter and the eccentricity of the rotor are responsible for the capacity of the pump when the pitch of the rotor is responsible for potential pressure.

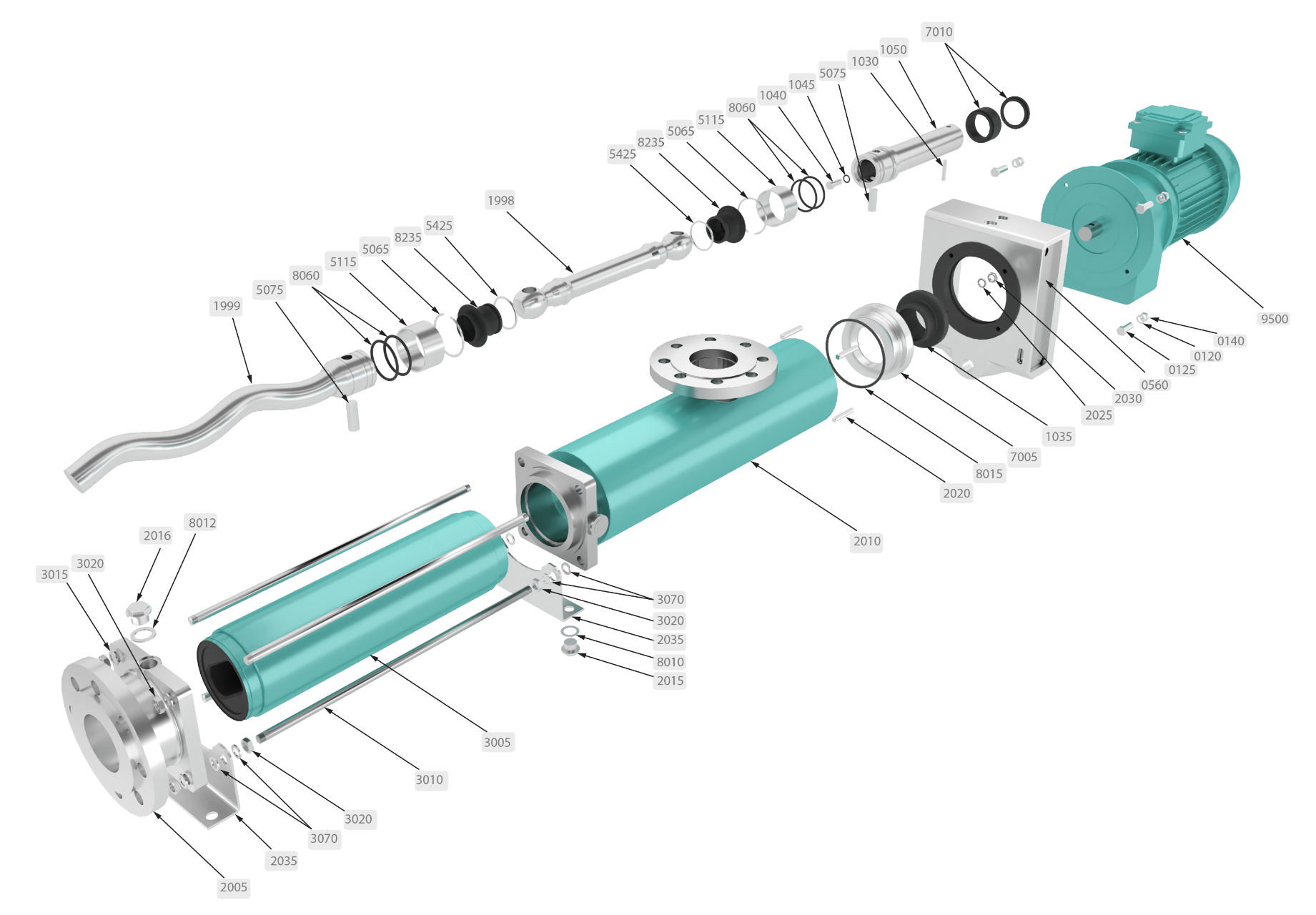

Design of Progressive Cavity Pumps
The design of a progressive cavity pump is engineered to provide efficient fluid transfer, handle various viscosities, and accommodate challenging fluids with suspended solids or abrasive materials.
1999 - Rotor
3005 - Stator
2010 - Working chamber
7040 - Gland packing
7010 - Mechanical seal
7005 - Mechanical seal housing
0085 - Transition stand
0560 - Protective panel
1030 - Transition shaft pin
1035 - Baffle ring
1050- Adapter shaft
1998 - Joint shaft
2005 - Outlet pipe
2015 - Draine screw
2020 - Stud screw
2025 - Spring washer
2035 - Support stand
3010 - Hairpin
3020 - Hexagon nut
3070 - Washer
5065 - Sealing ring
5075 - Finger
5115 - Retaining ring
8235 - Protective sleeve
8015 - O-ring
8016 - O-ring
8060 - O-ring
9500 - Motor
9510 - Gearbox
