PCP pump parts ANALOGS

NETZSCH

We manufacture and supply analogs of spare parts for PCP NETZSCH pumps of series NM, NE, NDP and others.

Order

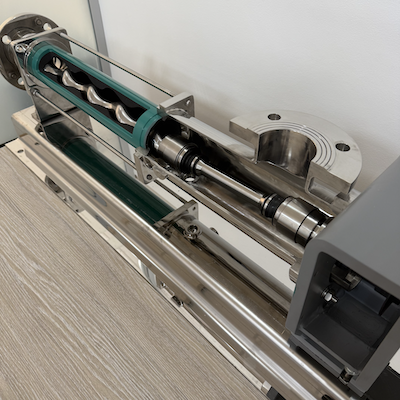

Spare parts for NETZSCH PCP pumps

BATURIN manufactures and supplies complete spare parts for all modifications of NETZSCH PCP pumps of the NM, NE, NDP, etc. series. Delivery is carried out in short delivery times as agreed with the customer.

General characteristics of PCP pumps

  • Capacity- up to 300 m3/h
  • Pressure- up to 48 bar

Order

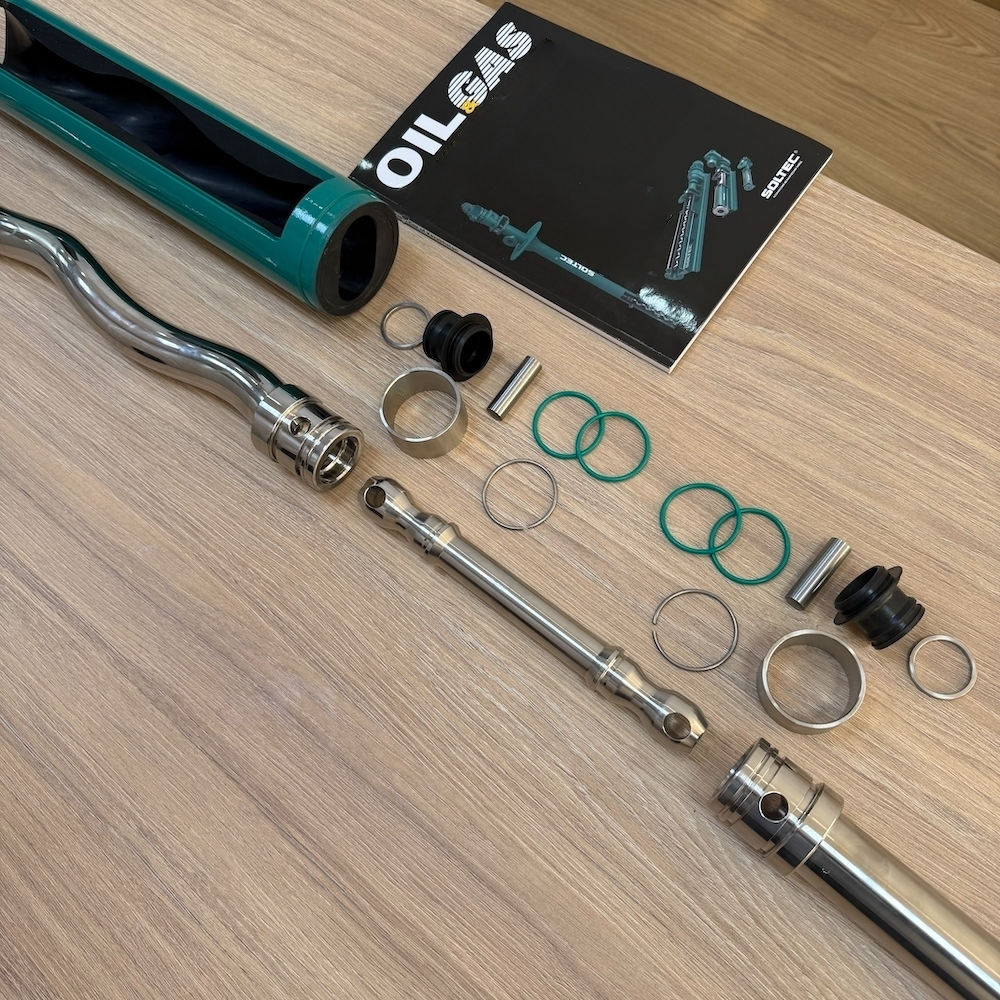

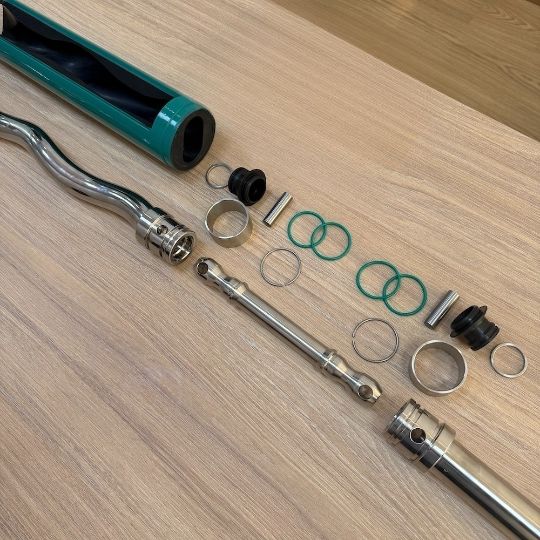

Spare parts for NETZSCH PCP pumps

  • Rotors
  • Stators
  • Joint shaft
  • Adapter and drive shafts
  • Spare parts for the joint
  • Mechanical seals

Spare parts for NETZSCH PCP pumps

Order

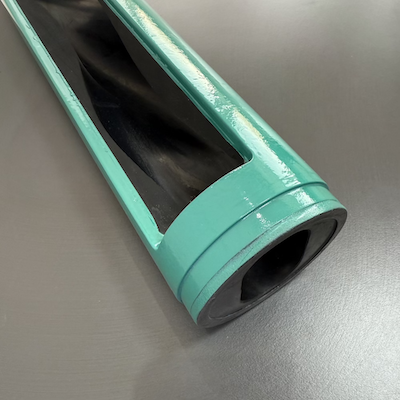

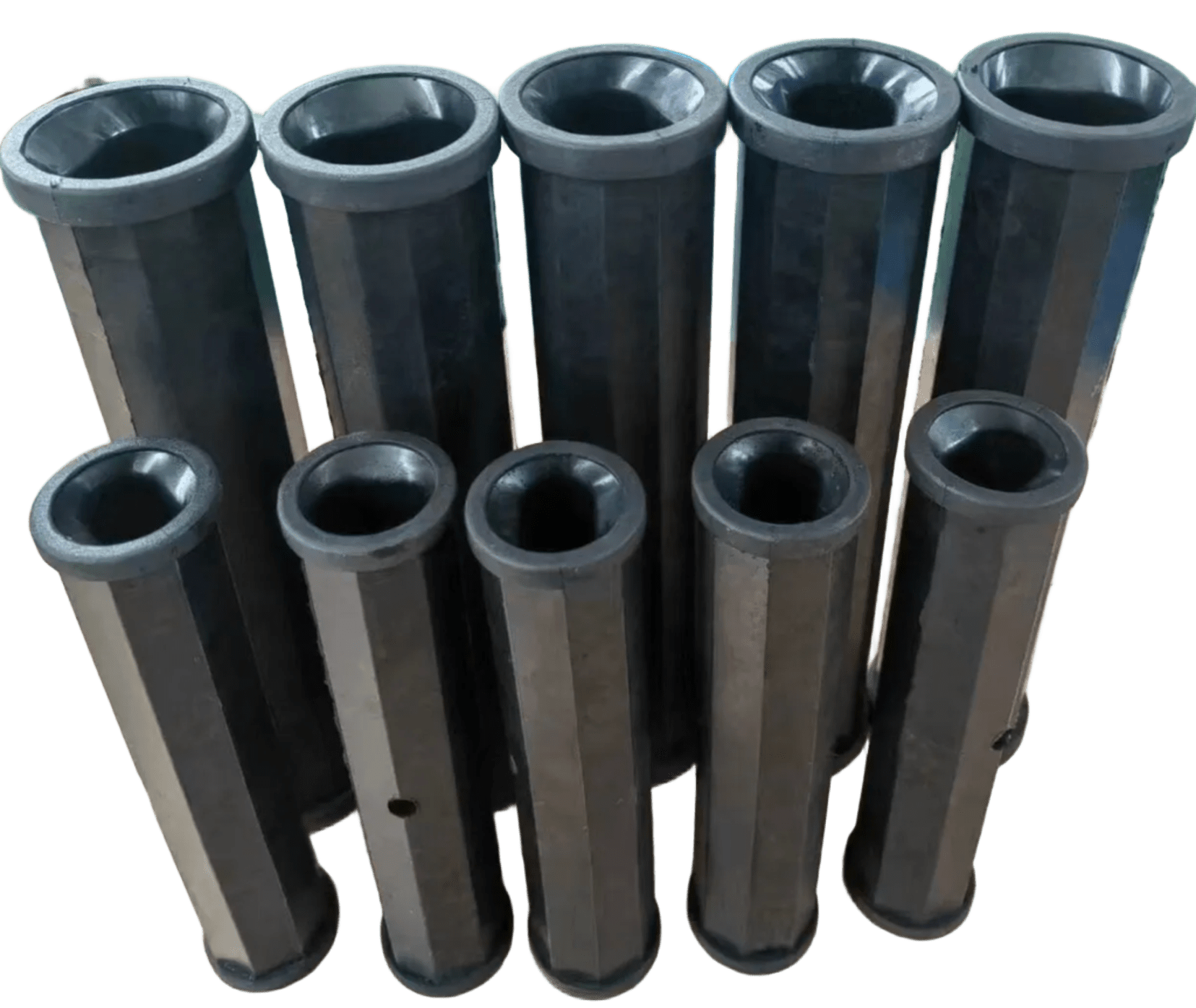

Stators for NETZSCH single screw pumps

  • NBR
  • HNBR
  • VITON® (FKM)
  • EPDM
  • NR
  • PTFE
3005_order number
Order

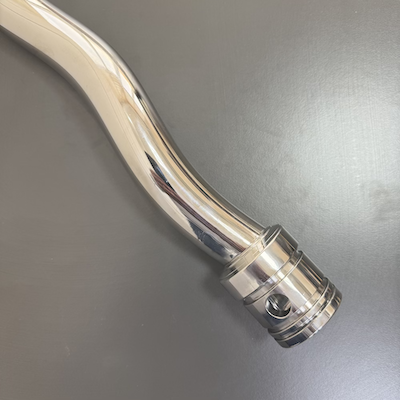

Rotors for NETZSCH single screw pumps

Design variants

  • SS304
  • SS316
  • SS304+Cr -chrome plating
  • Heat-treated tool steel
  • Duplex steels

1999_order number

Order

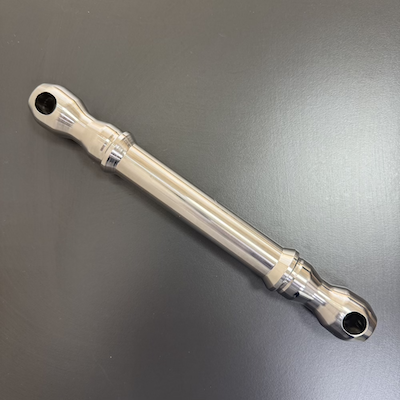

Joint shaft for NETZSCH single screw pumps

  • SS304
  • SS316
  • Duplex and special steels

1998_order number

Order

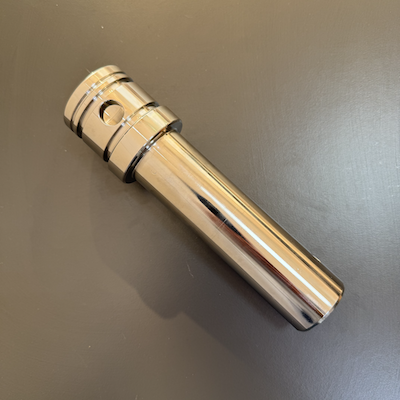

Adapter shafts and drive shafts for NETZSCH single screw pumps

  • SS304
  • SS316
  • Duplex and special steels
  • Shaft with chrome or ceramic coating when using a packing gland

1050_order number

Order

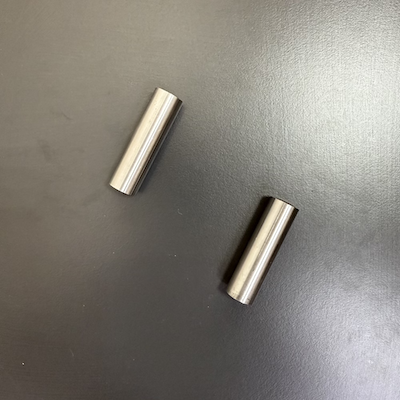

Joint pins for NETZSCH® single screw pumps


5075_order number

Order

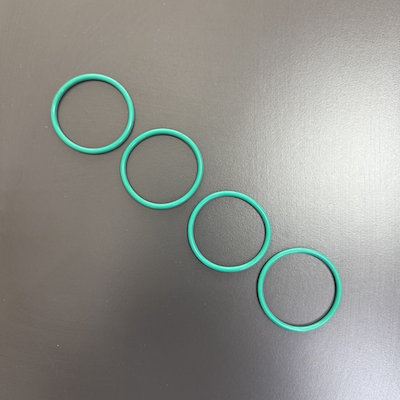

Joint O-rings for NETZSCH® single screw pumps

  • NBR
  • HNBR
  • VITON (FKM)
  • EPDM
  • NR

8060_order number

Order

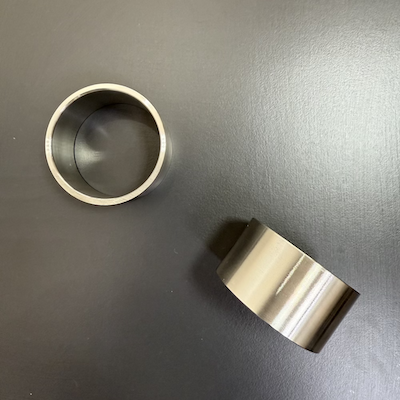

Joint protection bushing for NETZSCH® single screw pumps

  • SS304
  • SS316
  • Duplex and special steels

5115_order number

Order

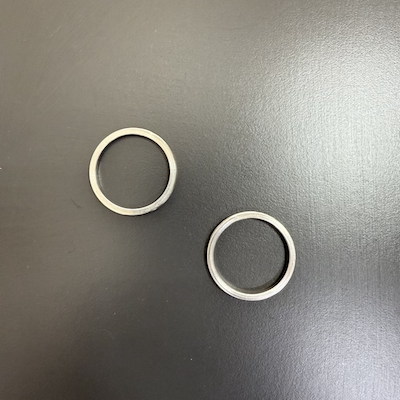

Joint protective sleeve crimp rings for NETZSCH® single screw pumps

  • SS304
  • SS316
  • Duplex and special steels

5425_order number

Order

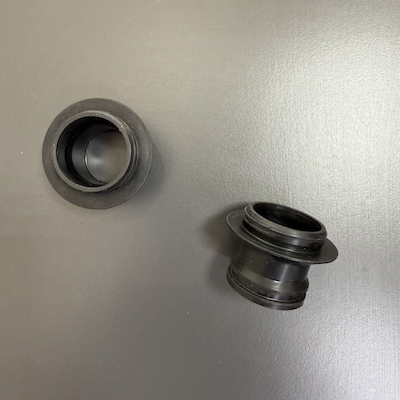

Joint protective sleeves for NETZSCH® single screw pumps

  • NBR
  • HNBR
  • VITON® (FKM)
  • EPDM
  • NR

8235_order number

Order

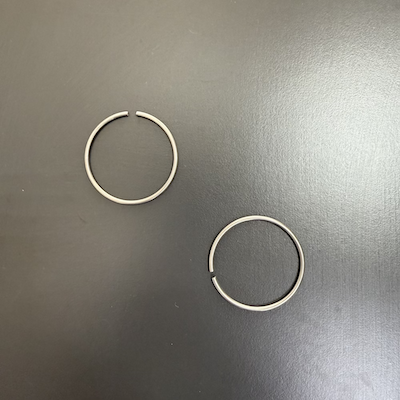

Joint retaining rings for NETZSCH® single screw pumps

  • SS304
  • SS316
  • Duplex and special steels

5065_order number

Order

Pump detailing

_________________

BATURIN supplies all spare parts (rotors, stators, joints, mechanical seals, etc.) for NETZSCH pumps.
Деталировка горизонтального насоса SOLTEC ®

1999 - Rotor

3005 - Stator

2010 - Working chamber

7040 - Gland packing

7010 - Mechanical seal

7005 - Mechanical seal housing

0085 - Transition stand

0560 - Protective panel

1030 - Transition shaft pin

1035 - Baffle ring

1050 - Adapter shaft

1998 - Joint shaft

2005 - Outlet pipe

2015 - Draine screw

2020 - Stud screw

2025 - Spring washer

2035 - Support stand

3010 - Hairpin

3020 - Hexagon nut

3070 - Washer

5065 - Sealing ring

5075 - Finger

5115 - Retaining ring

8235 - Protective sleeve

8015 - O-ring

8016 - O-ring

8060 - O-ring

9500 - Motor

9510 - Gearbox
